20mA IP65 Stainless Steel Industrial Keyboard 64 Keys

Lugar de origen CHINA
Nombre de la marca KINGLEADER
Certificación CE,FCC,ROHS
Número de modelo MKB-64A-TP
Cantidad de orden mínima 1pcs
Precio US$
Detalles de empaquetado 1pcs/box, 10pcs/ctns
Tiempo de entrega 20days
Condiciones de pago T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Capacidad de la fuente 3000pcs/month

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material del panel de delante Acero inoxidable Material del panel trasero Aleación de aluminio
Número de llaves 64 llaves ratón trackpad
Método del montaje Soporte del panel Nivel de la protección IP65
Interfaz USB o PS/2 Disposición los E.E.U.U. estándar o modificado para requisitos particulares
Alta luz

IP65 Stainless Steel Industrial Keyboard

,

20mA Stainless Steel Industrial Keyboard

,

64 Keys Industrial Pc Keyboard

Deja un mensaje
Descripción de producto

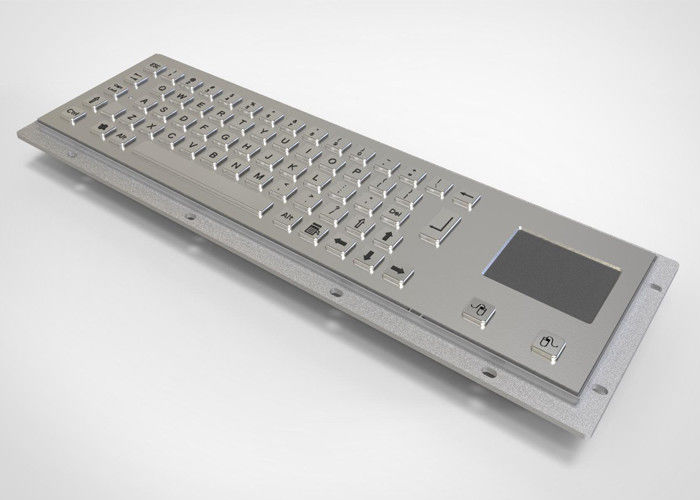

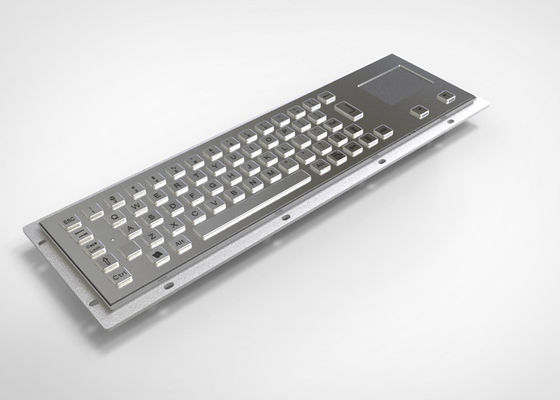

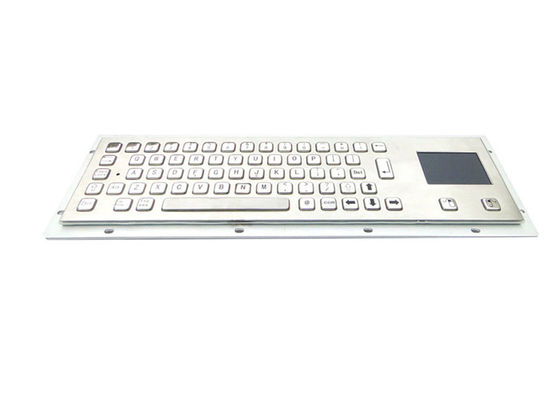

IP65 Liquid-Proof Stainless Steel Industrial Keyboard with Mouse Touchpad for Industrial Application



MKB-64A-TP

Key Features:

-64 keys, with integrated touchpad

-Panel mount, installing from the back side

-Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel

-Specially designed to operate in harsh environments, making them ideal for the demanding applications in industrial environments

-Built from stainless steel, high vandal-proof

-Dust-proof and liquid-proof, meet IP65 requirement

-PS/2 or USB interface, easy to plug into the computers directly

-Customizable



Items Specifications
Key Features -64 keys, with integrated touchpad;
-Panel mount, installing from the back side
-Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel
-Specially designed to operate in harsh environments, making them ideal for kiosks and other demanding applications.
-Built from stainless steel, high vandal-proof.
-Dust-proof and liquid-proof, meet IP65 requirement
-PS/2 or USB interface, easy to plug into the computers directly
-Customizable
Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics
- Touchpad cover: Composite
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20mA
- Interface: USB or PS2
EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification FCC,CE,RoHs
Dimension Front panel:392.0x110.0x22.2mm
Weight

1.80 kgs







20mA IP65 Stainless Steel Industrial Keyboard 64 Keys 0
